Setting hazard indicator and horn mode
This vehicle is set in hazard indicator and horn mode when you first receive the vehicle.
In hazard indicator and horn mode, when the LOCK
button 1 is pushed, the hazard indicator flashes twice and the horn chirps once. When the UNLOCK
button 2 is pushed, the hazard indicator flashes once.
If horns are not necessary, the system can be switched to the hazard indicator mode.
In hazard indicator mode, when the LOCK
button is pushed, the hazard indicator flashes twice. When the UNLOCK
button is pushed, neither the hazard indicator nor the horn operates.

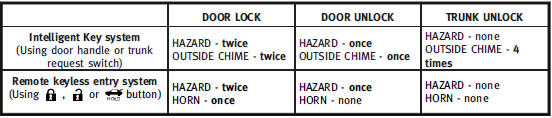

Hazard indicator and horn mode:
Hazard indicator mode:
Switching procedure:
To switch the hazard indicator and horn (chime) operation, push the LOCK
1 and UNLOCK
2 buttons on the
Intelligent Key simultaneously for more than 2 seconds.
• When the hazard indicator mode is set, the hazard indicator flashes 3 times.
• When the hazard indicator and horn mode is set, the hazard indicator flashes once and the horn chirps once.
